See our Tropical Forest Products rain screen, cladding and soffit guides at TropicalPro.com andtropicalforestproducts.com

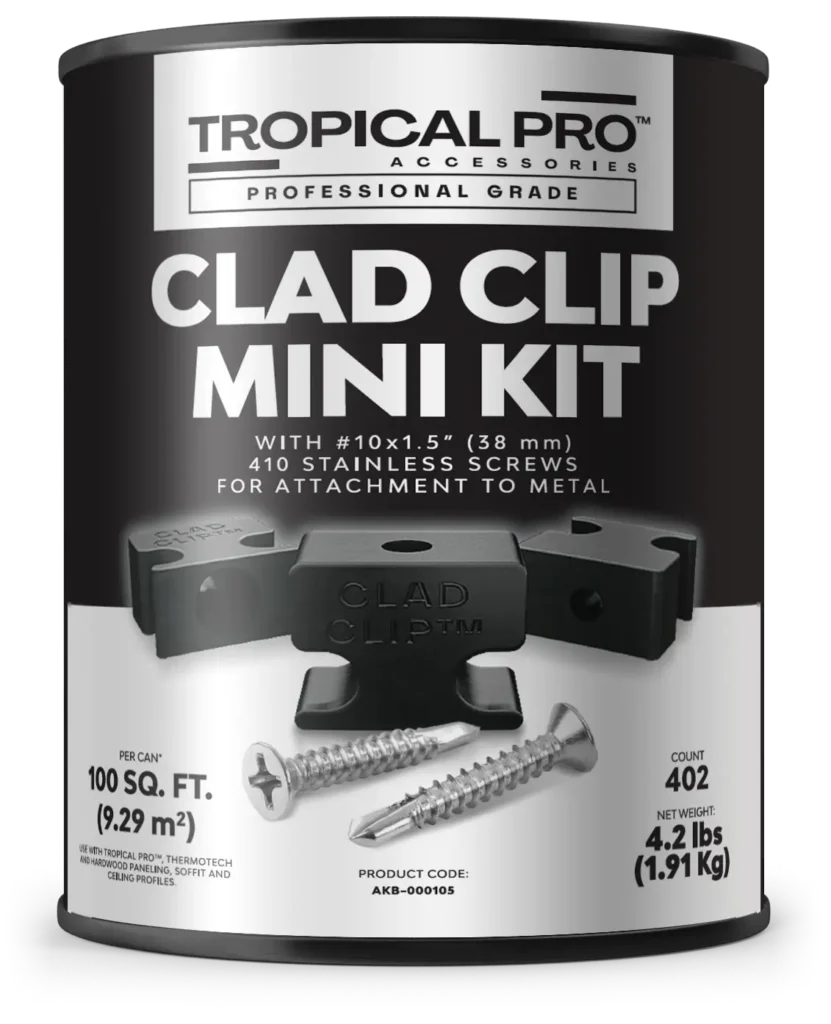

Tropical Pro™ Professional Grade Clad Clips are the gold standard for attaching Tropical Proᵀᴹ and Thermotech wood rain screen, cladding, paneling and soffit products milled to Clad Clip Profiles. The Clad Clip system facilitates back ventilation and rapid moisture evap-oration. In soffit applications, air flow occurs between every board eliminating the need for soffit vents. When combined with wood rain screen, cladding, paneling, and soffit products, clad clips eliminate the use of penetrating nails or screws which creates moisture points, greatly increasing the service life of wood cladding. The Clad Clip Mini System is designed for low wind exterior and interior applications.

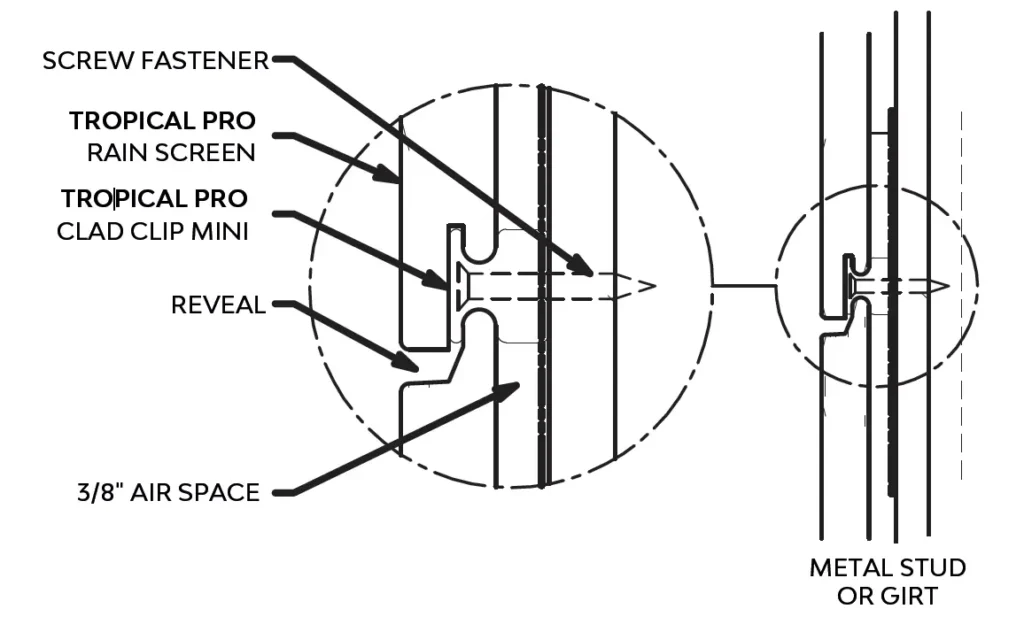

Tropical Pro™’ Clad Clips are designed to create a 3/8″ (10 mm) offset between the metal substrate and cladding to prevent water bridging and meet international building code rain Screen standards. Manufactured from V-O rated, glass filled nylon that is resistant to moisture, heat, fire, and impact, these clad clips are incredibly strong and can be used on all building envelope and substrate types. The nylon design eliminates any potential for a galvanic reaction between the clip and substrate or deterioration associated with salt spray. When paired with Tropical Pro™ screws, service life in any location is increased dramatically.
For attachment to wood sheathing, use Tropical Pro TM #10×1.5” (38 mm) 316 Stainless Steel Flat Head Screws — one screw per Mini Clip (low wind).
