Tropical Pro Deck Clips unique three hole design prevents deck board movement (snaking) at butt joints maintaining consistent spacing between boards.

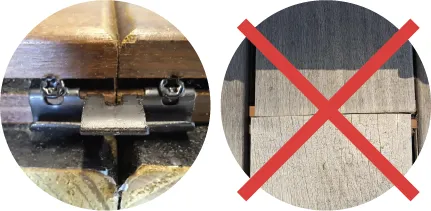

Tropical Pro™ Deck Clips unique 3 Hole Design allows clips to be reversed at butt joints creating a mechanical connection with a seamless transition and consistent spacing between deck boards.

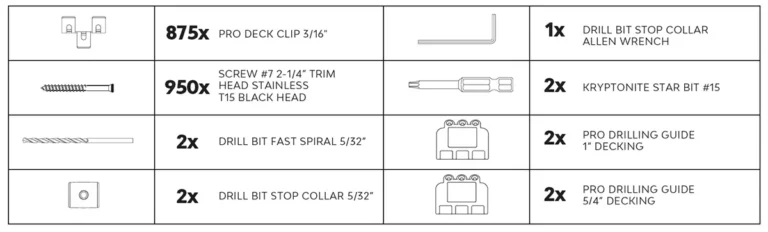

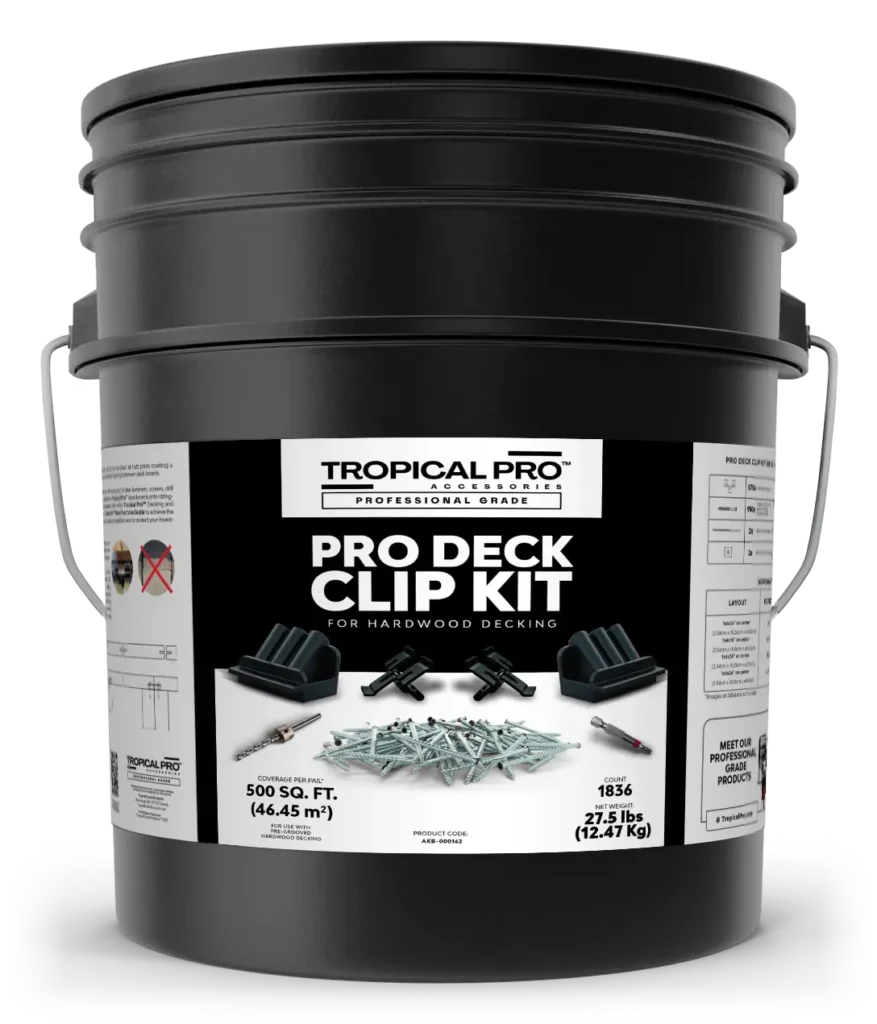

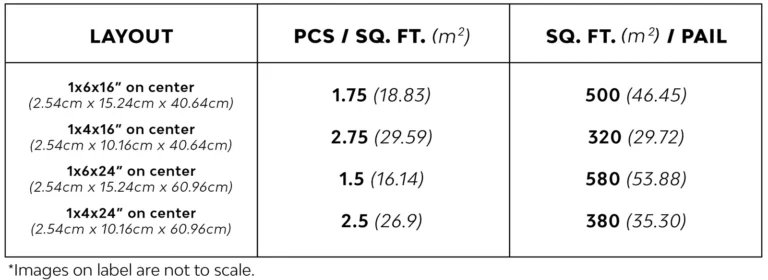

This Tropical Pro™ 500 sq. ft. Pro Deck Clip Kit contains the necessary hidden fasteners, screws, drill and driver bits to install 500 sq. ft. (46.45 m2) of 6″-wide (140mm) Tropical Pro™ deck boards onto stringers spaced 16 inches (40.6 cm) on center. Use in combination with other Tropical ProTM Decking and Cladding Products. Always make sure to review our Tropical Pro™ Best Practices Guide to achieve the best possible outcome and service life of your deck or cladding installation and to protect your investment over time.

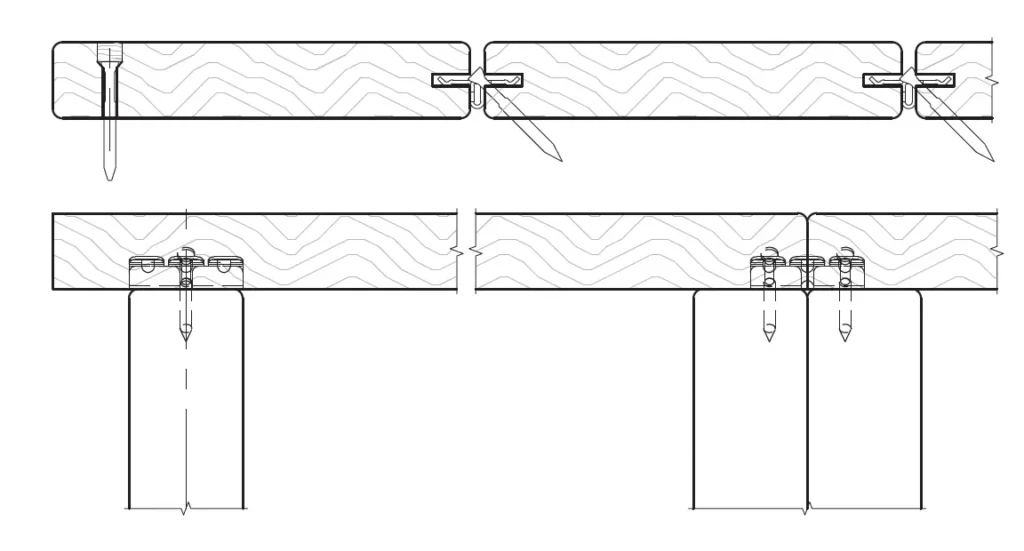

For installation of side grooved hardwood decking, use drilling guide and drill bit with stop to drill 45 degree hole through edge of deck board only. Do not drill into stringer. Use center hole of drilling guide and single wing of clip along main length of deck board. Where boards butt together, reverse clip and use outside shafts of drilling guide to drill holes and install one screw through each wing to create a mechanical connection between decking boards and stringer. This unique clip design prevents shifting at butt joints and maintains consistent spacing between deck boards.
Decking Installation Section details can be found in our Tropical Decking Installation Section Detail Guide
